LASER ENGRAVING SYSTEM
CANOVA
Professional laser engraving made simple
LASER ENGRAVING SYSTEM
CANOVA
Professional laser engraving made simple
NEW GENERATION OF MARKING LASER
NEW GENERATION OF MARKING LASER

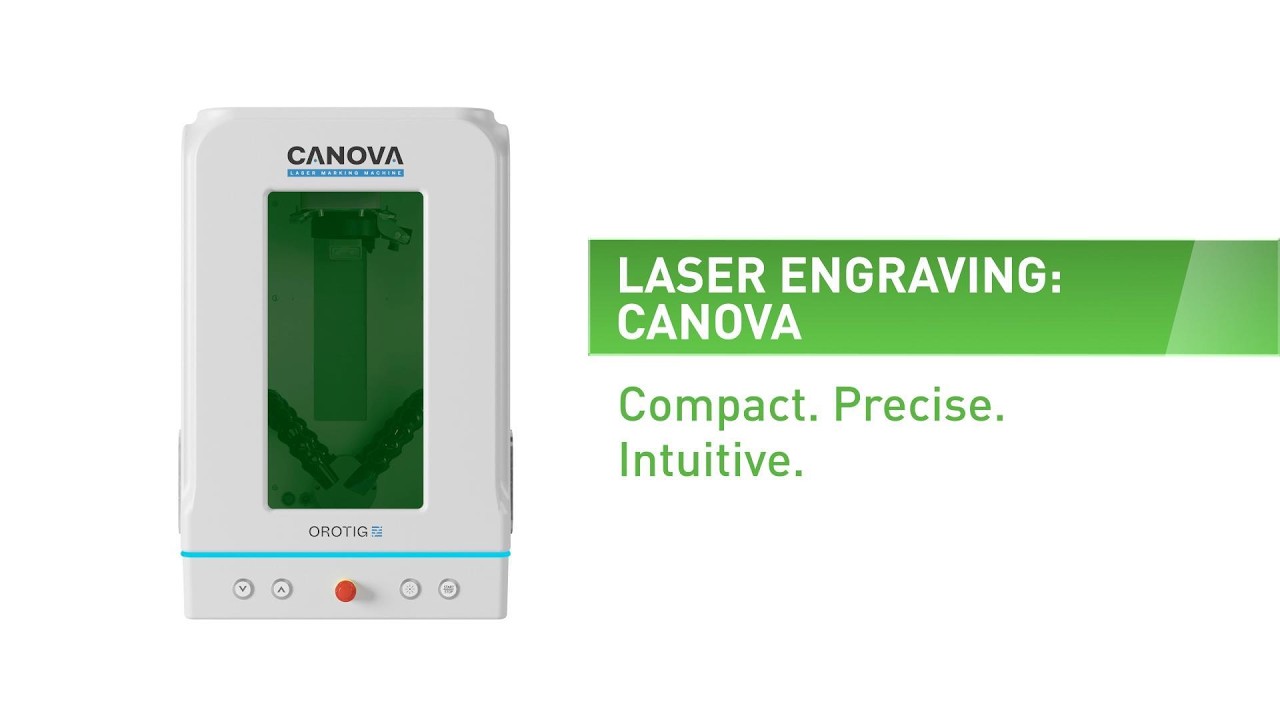

Canova is a compact laser engraving system for jewellery, precious metals, and other materials. The combination of precise laser technology, integrated cameras, and intuitive MARKo software enables professional engraving results even in compact workspaces.
TWO BUILT-IN CAMERAS
TWO BUILT-IN CAMERAS
Two integrated cameras provide both an overview and a detailed view of the workpiece. This allows engravings to be positioned, monitored, and executed with precision – even for fine details, logos, lettering, and micro-engravings.
INTUITIVE MARKo SOFTWARE
INTUITIVE MARKo SOFTWARE
The MARKo software guides the operator step by step through the engraving process. Existing files can be imported, new text can be created directly, and engraving jobs can be positioned and prepared easily. This makes Canova attractive even for users with limited laser engraving experience.
The software includes:
The software includes:
- Guided engraving paths
- Animated assistance tools
- Preset parameters
- Intuitive tools for job and positioning management
PRECISE FOCUSING
PRECISE FOCUSING
Canova offers three focusing options designed to support precise alignment and simplify the engraving workflow.
Digital autofocus automatically adjusts the focus to the workpiece and supports consistent focusing across the entire working area.
Mechanical autofocus (Fast Focus) detects the height of the workpiece using an integrated touch probe and sets the appropriate Z-axis value.
Manual focusing is performed using two calibrated red laser pointers on the engraving head. Once the two light points overlap, the focus is correctly set.
Digital autofocus automatically adjusts the focus to the workpiece and supports consistent focusing across the entire working area.
Mechanical autofocus (Fast Focus) detects the height of the workpiece using an integrated touch probe and sets the appropriate Z-axis value.
Manual focusing is performed using two calibrated red laser pointers on the engraving head. Once the two light points overlap, the focus is correctly set.
FLEXIBLE CONFIGURATION
FLEXIBLE CONFIGURATION
Canova can be equipped with different focusing lenses depending on the application:
Depending on the selected lens, the engraving area can reach up to 145 × 145 mm. Thanks to the generous 263 mm Z-axis travel and spacious working area, rigid bracelets and necklaces with a diameter of up to 118 mm can also be engraved.
- 160 mm standard lens for precise everyday work (standard)
- 100 mm lens for extremely fine high-resolution engraving
- 210 mm lens for larger workpieces
Depending on the selected lens, the engraving area can reach up to 145 × 145 mm. Thanks to the generous 263 mm Z-axis travel and spacious working area, rigid bracelets and necklaces with a diameter of up to 118 mm can also be engraved.
NEW GENERATION OF MARKING LASER
Canova is a compact laser engraving system for jewellery, precious metals, and other materials.
The combination of precise laser technology, integrated cameras, and intuitive MARKo software enables professional engraving results even in compact workspaces.
The combination of precise laser technology, integrated cameras, and intuitive MARKo software enables professional engraving results even in compact workspaces.
TWO BUILT-IN CAMERAS
Two integrated cameras provide both an overview and a detailed view of the workpiece.
This allows engravings to be positioned, monitored, and executed with precision – even for fine details, logos, lettering, and micro-engravings.
This allows engravings to be positioned, monitored, and executed with precision – even for fine details, logos, lettering, and micro-engravings.
INTUITIVE MARKo SOFTWARE
The MARKo software guides the operator step by step through the engraving process. Existing files can be imported, new text can be created directly, and engraving jobs can be positioned and prepared easily. This makes Canova attractive even for users with limited laser engraving experience.
The software includes:
The software includes:
- Guided engraving paths
- Animated assistance tools
- Preset parameters
- Intuitive tools for job and positioning management
PRECISE FOCUSING
Canova offers three focusing options designed to support precise alignment and simplify the engraving workflow.
Digital autofocus automatically adjusts the focus to the workpiece and supports consistent focusing across the entire working area.
Mechanical autofocus (Fast Focus) detects the height of the workpiece using an integrated touch probe and sets the appropriate Z-axis value.
Manual focusing is performed using two calibrated red laser pointers on the engraving head. Once the two light points overlap, the focus is correctly set.
Digital autofocus automatically adjusts the focus to the workpiece and supports consistent focusing across the entire working area.
Mechanical autofocus (Fast Focus) detects the height of the workpiece using an integrated touch probe and sets the appropriate Z-axis value.
Manual focusing is performed using two calibrated red laser pointers on the engraving head. Once the two light points overlap, the focus is correctly set.
FLEXIBLE CONFIGURATION
Canova can be equipped with different focusing lenses depending on the application:
- 160 mm standard lens for precise everyday work (standard)
- 100 mm lens for extremely fine high-resolution engraving
- 210 mm lens for larger workpieces
Depending on the selected lens, the engraving area can reach up to 145 × 145 mm. Thanks to the generous 263 mm Z-axis travel and spacious working area, rigid bracelets and necklaces with a diameter of up to 118 mm can also be engraved.
LASER ENGRAVING SYSTEM
CANOVA
Compact. Precise. Intuitive.
starts at
CHF 15'900.--
Excluding shipping and VAT
LASER ENGRAVING SYSTEM
CANOVA
Compact. Precise. Intuitive.
starts at CHF 15'900.--
excluding shipping and VAT.
Canova is available in different configurations and can be individually adapted depending on the application and working environment.
TECHNICAL DATA
CANOVA
| Laser type: | Fiber P laser, diode-pumped fiber |
| Laser source (rated power): | 30 W / 50 W |
| Available focal lenses: | 100 mm / 160 mm / 210 mm |
| Engraving area (depending on selected lens): | 60 × 60 mm 110 × 110 mm 145 × 145 mm |
| Z-axis: | Stepper motor |
| Z-axis travel: | 263 mm |
| Engraving speed: | up to 8 m/s |
| Frequency: | 37–600 kHz at 30 W 40–600 kHz at 50 W |
| Pulse energy: | 0.8 mJ at 37 kHz at 30 W 1.25 mJ at 40 kHz at 50 W |
TECHNICAL DATA
CANOVA
